Lens tech data for Sony E PZ 18-200/3.5-6.3 OSS

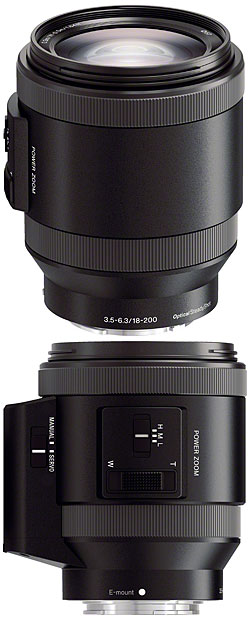

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony E PZ 18-200/3.5-6.3 OSS |
| Mount type | E-mount |
| Release year | 2012 |
| Status | current |
| Manufacturer's order code | SEL-P18200 |
| Aperture | |
| Minimum aperture | 22–40 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 17/12 |
| Minimum focus distance | 30 cm – 50 cm |
| Maximum magnification | 1:2.8 (0.35×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (ring) |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | optical image stabilizer, motorized zoom |
| Dimensions and weight | |
| Minimum length [mm] | 99.0 |
| Maximum length [mm] | 174.0 |
| Maximum diameter [mm] | 93.2 |
| Filter diameter [mm]/type | 67/front |
| Weight [g] nominal/net/gross | 649/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | rectangular |
| Hood part number | ALC-SH125 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | – |
| Misc | |
| Lens ID | 32807 |
| Comments | – |
| Reviews & links | Gary Wolstenholme on ePHOTOzine (full review) |
| Related lenses | |
| Part of camera kit | |
