Camera tech data for Sony NEX-EA50E

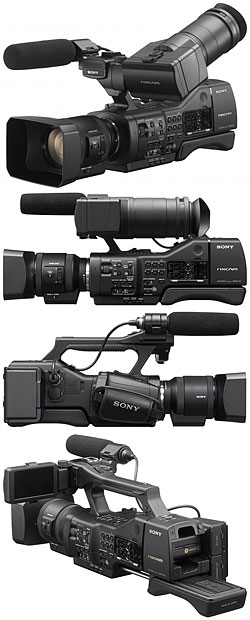

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony NEX-EA50E , NEX-EA50U (USA) |
| Mount type | E-mount |
| Supported lenses | E, FE, A-mount (via LA-EAx) |
| Release year | 2012 |
| Status | discontinued |
| Digital parameters | |
| Output resolution [pixels] | 4912×3264, 3568×2368, 2448×1624 |
| Output resolution (16:9) [pixels] | 4912×2760, 3568×2000, 2448×1376 |
| Effective output pixels | 16.0 M |
| Sensor type | CMOS, Bayer pattern, 12-bit ADC |
| Sensor size [mm] (crop factor) | 23.5×15.6 (1.5×) |
| ISO range | 160–5000 (1/3 stops) |
| Gain [dB] | 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 |
| Color and post-processing | |
| Color spaces | unknown |
| Image parameters | unknown |
| Creative styles | unknown |
| Picture effects | – |
| Picture parameters | black level, gamma (5 options), black gamma, knee, color mode, color level, color phase, color depth, WB shift, detail |
| Gamma settings | Movie, Still, Cine1, Cine2, ITU709 |
| Picture profiles | 6 |
| White balance | auto, daylight, tungsten, direct entry, custom (1 register) |
| Color temperature range [K] | 2300–15000 |
| Color temperature increments [K] | 100 |
| Color compensation index [steps] | ± 9 (A/B), ± 9 (G/M) |
| White-balance bracketing [pictures per shot] (steps [mired]) | unknown |
| Noise reduction | unknown |
| D-range optimizer | – |
| DRO bracketing [pictures per shot] (levels) | – |
| Auto HDR | – |
| Lens compensation | unknown |
| Movie recording | |
| Movie resolutions [size/fps] | 1920×1080p60, 1920×1080p50, 1920×1080p30, 1920×1080p25, 1920×1080p24, 1920×1080i60, 1920×1080i50 |
| Movie ISO range | unknown |
| Shutter speed (movie) [s] | 1/3 – 1/10000 |
| Movie frame rates [fps] | 60, 50, 30, 25, 24 |
| Movie formats | AVCHD 2.0, MPEG-2 |
| Audio formats | Dolby Digital AC3, Linear PCM |
| Movie length | unlimited |
| Microphone | built-in (stereo), 3.5 mm plug (stereo), XLR 3-pin (stereo), level control |
| Audio monitoring | 3.5 mm (stereo) |
| Movie features | time code, user bit |
| Auto-focus | |
| AF sensors | unknown |
| AF range [EV] | unknown |
| AF modes | unknown |
| AF assist light | no |
| AF adjustment [no. of lenses] | unknown |
| AF bracketing [step width] ([number of shots]) | - (-) |
| Features | |
| Remote control via USB/WiFi | unknown |
| Other features | MF peaking, face recognition, speaker, GPS |
| Metering | |
| Metering modes | unknown |
| Metering range [EV] (with spot) | unknown |
| Auto Exposure Lock button | unknown |
| Exposure modes | unknown |
| Subject programs | unknown |
| Exposure compensation [stops] (steps [stops]) | ± 2 (1/3) |
| Zebra | yes |
| Flash | |
| Flash shoe type | Multi Interface |
| Accessory shoe cap | – |
| Flash modes | – |
| Flash metering | – |
| Requires D flash unit | – |
| Flash guide number [m]/ coverage [mm] | -/- |
| X-Sync speed [s] | – |
| High Speed Sync | no |
| Wireless flash | no |
| Wireless x-sync speed [s] | – |
| Wireless HSS | no |
| Ratio flash control | no |
| Flash exposure compensation [stops] (steps [stops]) | – |
| Studio flash socket | no |
| Viewfinder | |
| Viewfinder type | – |
| Size [cm/inches]/ resolution [pixels] | -/- |
| Viewfinder coverage | – |
| Viewfinder magnification | – |
| Eye relief [mm]/ from frame [mm] | – |
| Diopter adjustment [diopters] | – |
| Eyepiece cup | unknown |
| Viewfinder accessory compatible | – |
| Live View | main sensor |
| Live View zoom | 1×, 4×, 8× |
| Display | |
| Display technology, size [mm/inches], resolution [dots] | TFT, 3.5″, 921600 |
| Display mount | tilt up/down |
| Histogram display | luminance |
| Automatic brightness | unknown |
| Touch screen | no |
| Video output interfaces | HDMI (1080p/1080i) |
| Display accessories (opt.) | – |
| Shooting | |
| Frame rate [fps] | unknown |
| Frame rate with AF [fps] | unknown |
| Shutter speed (still) [s] | unknown |
| Shutter type | elec. |
| Self-timer [s] | unknown |
| Continuous self-timer [shots] | unknown |
| Bracketing frames (stops) | unknown |
| Remote release socket | LANC |
| Wireless remote release | RMT-845 |
| Release priority | no |
| Depth of field preview | unknown |
| Aperture can be changed during depth of field preview | unknown |
| Silent depth of field preview | unknown |
| Storage | |
| Storage media (number of slots) | Memory Stick Duo, PRO Duo, PRO-HG Duo, SD, SDHC, SDXC, flash memory HXR-FMU128 (2) |
| Remote storage via USB | unknown |
| Remote storage via FTP | no |
| File system formats | FAT12, FAT16, FAT32, exFAT |
| File formats | unknown |
| Power | |
| Batteries | 1× NP-F970, 1× NP-F770 |
| Battery pack | – |
| External power supply | AC adaptor AC-VL1 |
| Construction and accessories | |
| Weather sealing | no |
| Mount material | steel |
| Weight [g] | 1720 |
| Standard accessories | USB cable, remote control RMT-845, battery NP-F770, charger AC-VL1, microphone ECM-XM1, pop filter, software |
| Other optional accessories | lens adapters LA-EAx |
| Misc | |
| Other interfaces | USB 2.0 (High Speed; Mini-B) |
| USB modes | unknown |
| Printing | – |
| Latest firmware version (release date) | unknown |
| Comments | – |
| Reviews & links | – |
| Related cameras | – |
| Kits |
|
