Lens tech data for Minolta AF 100-400/4.5-6.7 APO

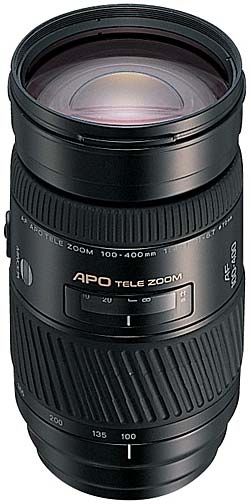

Image: Minolta, used by permission
General | |
---|---|
Name | Minolta AF 100-400/4.5-6.7 APO |
Mount type | A-mount |
Release year | 1995 |
Status | discontinued |
Manufacturer's order code | 2644-110 |
Aperture | |
Minimum aperture | 32–45 |
Aperture blades | 9, circular |
Optical construction | |
Elements/groups | 14/11 |
Minimum focus distance | 200 cm |
Maximum magnification | 1:4 (0.25×) |
Focus design | front |
Features | |
AF drive | in-body motor |
D function | no |
Lens buttons | 1 |
Focus range limiter | – |
Tripod mount | – |
Other features | distance scale |
Dimensions and weight | |
Minimum length [mm] | 149.0 |
Maximum length [mm] | 226.0 |
Maximum diameter [mm] | 79.5 |
Filter diameter [mm]/type | 72/front |
Weight [g] nominal/net/gross | 840/unknown/930 |
Hood | |
Hood mount | bayonet |
Hood shape | round |
Hood part number | 6644-810 |
Movements | |
Filter rotates when focusing | yes |
Filter rotates when zooming | no |
Length changes when focusing | yes |
Length changes when zooming | yes |
Focus ring rotates in AF mode | yes |
Construction and accessories | |
Color | black |
Weather sealing | no |
Zoom ring position | rear |
Mount material | steel |
Standard accessories | front cap, rear cap, hood, case |
Optional accessories | – |
Misc | |
Lens ID | 14 |
Comments | – |
Reviews & links | – |
Related lenses | – |
Part of camera kit | – |
