Lens tech data for Sony FE 28-70/3.5-5.6 OSS

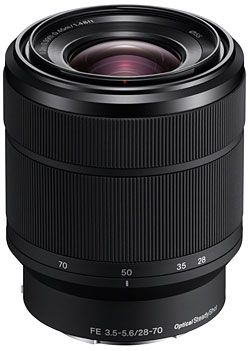

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony FE 28-70/3.5-5.6 OSS |
| Mount type | E-mount |
| Release year | 2013 |
| Status | current |
| Manufacturer's order code | SEL-2870 |
| Aperture | |
| Minimum aperture | 22–36 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 9/8 |
| Minimum focus distance | 30 cm – 45 cm |
| Maximum magnification | 1:5.3 (0.19×) |
| Focus design | internal |
| Features | |
| AF drive | linear |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | optical image stabilizer |
| Dimensions and weight | |
| Minimum length [mm] | 83.0 |
| Maximum length [mm] | 91.0 |
| Maximum diameter [mm] | 72.5 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 295/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH132 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32813 |
| Comments | Latest firmware: 03 (05/2017) |
| Reviews & links | Chris Gampat on The Phoblographer (full review), Klaus Schroiff on Photozone.de (full frame) (full review), Kurt Munger on Photo Jottings (full review), Mark Goldstein on Photography Blog (full review) |
| Related lenses | – |
| Part of camera kit | |
