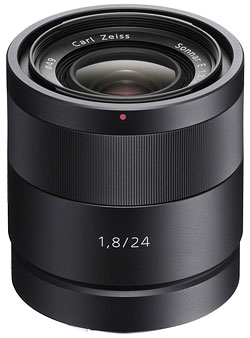

Lens tech data for Carl Zeiss Sonnar T* E 24/1.8 ZA
Image: Sony, used by permission
| General | |
|---|---|
| Name | Carl Zeiss Sonnar T* E 24/1.8 ZA |
| Mount type | E-mount |
| Release year | 2011 |
| Status | current |
| Manufacturer's order code | SEL-24F18Z |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 8/7 |
| Minimum focus distance | 16 cm |
| Maximum magnification | 1:4 (0.25×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (ring) |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | – |
| Dimensions and weight | |
| Minimum length [mm] | 65.5 |
| Maximum length [mm] | 65.5 |
| Maximum diameter [mm] | 63.0 |
| Filter diameter [mm]/type | 49/front |
| Weight [g] nominal/net/gross | 225/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH114 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32789 |
| Comments | – |
| Reviews & links | Chris Gampat on The Phoblographer (full review), Klaus Schroiff (full review), Mark Goldstein on Photography Blog (full review) |
| Related lenses | – |
| Part of camera kit | – |
