Lens tech data for Minolta AF 70-200/2.8 APO G (D) SSM

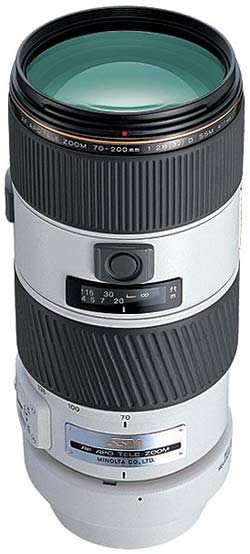

Image: Minolta, used by permission
| General | |
|---|---|
| Name | Minolta AF 70-200/2.8 APO G (D) SSM |
| Mount type | A-mount |
| Release year | 2003 |
| Status | discontinued |
| Manufacturer's order code | 2682-118 |
| Aperture | |
| Minimum aperture | 32 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 19/16 |
| Minimum focus distance | 120 cm |
| Maximum magnification | 1:4.85 (0.21×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (ring) |
| D function | yes |
| Lens buttons | 3 |
| Focus range limiter | electronic, dual range |
| Tripod mount | removable |
| Other features | two DMF modes, distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 196.5 |
| Maximum length [mm] | 196.5 |
| Maximum diameter [mm] | 87.0 |
| Filter diameter [mm]/type | 77/front |
| Weight [g] nominal/net/gross | 1340/unknown/1597 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | unknown |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | white |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 33 |
| Comments | – |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
