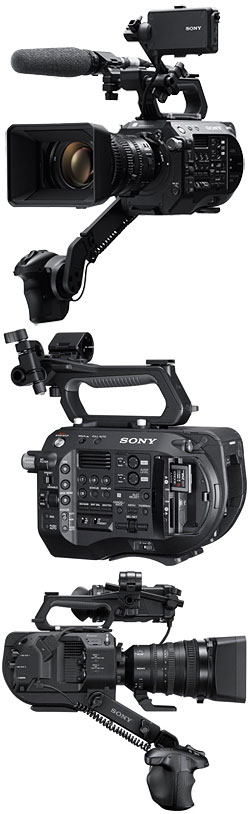

Camera tech data for Sony PXW-FS7 Ⅱ
| General | |
|---|---|
| Name | Sony PXW-FS7 Ⅱ |
| Mount type | E-mount |
| Supported lenses | E, FE, A-mount (via LA-EAx) |
| Release year | 2017 |
| Status | current |
| Digital parameters | |
| Output resolution [pixels] | – |
| Output resolution (16:9) [pixels] | – |
| Effective output pixels | 0 |
| Sensor type | CMOS, Bayer pattern |
| Sensor size [mm] (crop factor) | 25.5×15.6 (1.4×) |
| ISO range | – |
| Gain [dB] | -3, 0, 3, 6, 9, 12, 18 |
| Color and post-processing | |
| Color spaces | – |
| Image parameters | – |
| Creative styles | – |
| Picture effects | – |
| Picture parameters | black level, gamma (4 options), black gamma, knee, WB shift, detail |
| Gamma settings | Movie, S-Log3, HyperGamma, User |
| Picture profiles | unknown |
| White balance | auto, custom (2 registers) |
| Color temperature range [K] | 1500–50000 |
| Color temperature increments [K] | 100 |
| Color compensation index [steps] | unknown |
| White-balance bracketing [pictures per shot] (steps [mired]) | – |
| Noise reduction | high-ISO (3 levels; off) |
| D-range optimizer | – |
| DRO bracketing [pictures per shot] (levels) | – |
| Auto HDR | – |
| Lens compensation | – |
| Movie recording | |
| Movie resolutions [size/fps] | 3840×2160p60, 3840×2160p50, 3840×2160p30, 3840×2160p25, 3840×2160p24, 1920×1080p60, 1920×1080p50, 1920×1080p30, 1920×1080p25, 1920×1080p24, 1920×1080i60, 1920×1080i50 |
| Movie ISO range | 2000 |
| Shutter speed (movie) [s] | 1/3 – 1/9000 |
| Movie frame rates [fps] | 180, 150, 120, 1 |
| Movie formats | XAVC-I, XAVC-L, MPEG-2 |
| Audio formats | Linear PCM |
| Movie length | unlimited |
| Microphone | built-in (mono), Multi Interface (stereo), XLR 3-pin (stereo), level control |
| Audio monitoring | 3.5 mm (stereo) |
| Movie features | auto slow shutter, time code, user bit, picture effects, rec control, dual video rec, marker settings |
| Auto-focus | |
| AF sensors | unknown |
| AF range [EV] | unknown |
| AF modes | AF-S, AF-C |
| AF assist light | no |
| AF adjustment [no. of lenses] | 30 |
| AF bracketing [step width] ([number of shots]) | - (-) |
| Features | |
| Remote control via USB/WiFi | yes |
| Other features | MF peaking, speaker, GPS, WiFi support, NFC |
| Metering | |
| Metering modes | unknown |
| Metering range [EV] (with spot) | unknown |
| Auto Exposure Lock button | no |
| Exposure modes | unknown |
| Subject programs | – |
| Exposure compensation [stops] (steps [stops]) | – |
| Zebra | yes |
| Flash | |
| Flash shoe type | ISO (mechanical), Multi Interface |
| Accessory shoe cap | FA-SHC1M |
| Flash modes | – |
| Flash metering | – |
| Requires D flash unit | – |
| Flash guide number [m]/ coverage [mm] | -/- |
| X-Sync speed [s] | – |
| High Speed Sync | no |
| Wireless flash | no |
| Wireless x-sync speed [s] | – |
| Wireless HSS | no |
| Ratio flash control | no |
| Flash exposure compensation [stops] (steps [stops]) | – |
| Studio flash socket | no |
| Viewfinder | |
| Viewfinder type | – |
| Size [cm/inches]/ resolution [pixels] | -/- |
| Viewfinder coverage | 100% |
| Viewfinder magnification | – |
| Eye relief [mm]/ from frame [mm] | – |
| Diopter adjustment [diopters] | – |
| Eyepiece cup | included |
| Viewfinder accessory compatible | – |
| Live View | main sensor |
| Live View zoom | 1×, 4× |
| Display | |
| Display technology, size [mm/inches], resolution [dots] | TFT, 3.5″, 1555200 |
| Display mount | tilt up/down |
| Histogram display | luminance |
| Automatic brightness | no |
| Touch screen | no |
| Video output interfaces | HDMI-A (1080p/1080i/4K), 3G-SDI |
| Display accessories (opt.) | – |
| Shooting | |
| Frame rate [fps] | – |
| Frame rate with AF [fps] | 0.0 |
| Shutter speed (still) [s] | – |
| Shutter type | elec. |
| Self-timer [s] | – |
| Continuous self-timer [shots] | – |
| Bracketing frames (stops) | – |
| Remote release socket | LANC |
| Wireless remote release | RMT-845 |
| Release priority | no |
| Depth of field preview | yes |
| Aperture can be changed during depth of field preview | yes |
| Silent depth of field preview | yes |
| Storage | |
| Storage media (number of slots) | SD, SDHC, SDXC, XQD (3) |
| Remote storage via USB | no |
| Remote storage via FTP | no |
| File system formats | FAT12, FAT16, FAT32, exFAT |
| File formats | – |
| Power | |
| Batteries | 1× BP-U90, 1× BP-U60, 1× BP-U30 |
| Battery pack | – |
| External power supply | AC adaptor MPA-AC1 |
| Construction and accessories | |
| Weather sealing | yes |
| Mount material | steel |
| Weight [g] | 2000 |
| Standard accessories | body cap, USB cable, remote control RMT-845, battery BP-U30, charger BC-U1, AC power adapter MPA-AC1, software |
| Other optional accessories | lens adapters LA-EAx |
| Misc | |
| Other interfaces | USB 2.0 (High Speed; Mini-B) |
| USB modes | mass storage |
| Printing | – |
| Latest firmware version (release date) | unknown |
| Comments | Electronic Variable ND, lever lock lens mount, ITU-R BT.2020 |
| Reviews & links | Sony (press release) |
| Related cameras | |
| Kits |
|
