Lens tech data for Sony FE 70-200/4 G OSS

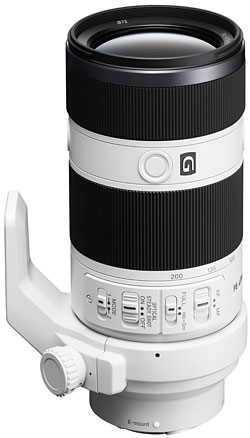

Image: Sony, used by permission

General
Name	Sony FE 70-200/4 G OSS
Mount type	E-mount
Release year	2014
Status	current
Manufacturer's order code	SEL-70200G
Aperture
Minimum aperture	22
Aperture blades	9, circular
Optical construction
Elements/groups	21/15
Minimum focus distance	100 cm – 150 cm
Maximum magnification	1:7.7 (0.13×)
Focus design	internal
Features
AF drive	linear
D function	no
Lens buttons	3
Focus range limiter	electronic, dual range
Tripod mount	removable
Other features	optical image stabilizer, AF/MF switch, panning modes
Dimensions and weight
Minimum length [mm]	175.0
Maximum length [mm]	175.0
Maximum diameter [mm]	80.0
Filter diameter [mm]/type	72/front
Weight [g] nominal/net/gross	840/840/1050
Hood
Hood mount	bayonet
Hood shape	round
Hood part number	ALC-SH133
Movements
Filter rotates when focusing	no
Filter rotates when zooming	no
Length changes when focusing	no
Length changes when zooming	no
Focus ring rotates in AF mode	no
Construction and accessories
Color	white
Weather sealing	yes
Zoom ring position	rear
Mount material	steel
Standard accessories	front cap, rear cap, hood, pouch
Optional accessories	–
Misc
Lens ID	32810
Comments	Latest firmware: 03 (05/2017)
Reviews & links	Chris Gampat on The Phoblographer (full review), Gordon Laing at Camera Labs (full review), John Riley on ePHOTOzine (full review), John Sison (video), Jordan Steele on Admiring Light (full review), Klaus Schroiff on photozone.de (full review), Kurt Munger on Photo Jottings (full review), Mark Goldstein on Photography Blog (full review), Richard Sibley on What Digital Camera (full review)
Related lenses	–
Part of camera kit	–
