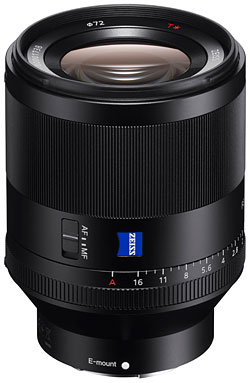

Lens tech data for Zeiss Planar T* FE 50/1.4 ZA
 | General |
Name | Zeiss Planar T* FE 50/1.4 ZA
|
---|
Mount type | E-mount
|
---|
Release year | 2016
|
---|
Status | current
|
---|
Manufacturer's order code | SEL-50F14Z
|
---|
Aperture |
Minimum aperture | 16
|
---|
Aperture blades | 11, circular
|
---|
Optical construction |
Elements/groups | 12/9
|
---|
Minimum focus distance | 45 cm
|
---|
Maximum magnification | 1:6.5 (0.15×)
|
---|
Focus design | internal
|
---|
Features |
AF drive | SSM (ring), DMF compatible
|
---|
D function | no
|
---|
Lens buttons | –
|
---|
Focus range limiter | –
|
---|
Tripod mount | –
|
---|
Other features | manual aperture option (w/ click switch), AF/MF switch
|
---|
Dimensions and weight |
Minimum length [mm] | 108.0
|
---|
Maximum length [mm] | 108.0
|
---|
Maximum diameter [mm] | 83.5
|
---|
Filter diameter [mm]/type | 72/front
|
---|
Weight [g] nominal/net/gross | 778/780/850
|
---|
Hood |
Hood mount | bayonet
|
---|
Hood shape | flower
|
---|
Hood part number | ALC-SH143
|
---|
Movements |
Filter rotates when focusing | no
|
---|
Length changes when focusing | no
|
---|
Focus ring rotates in AF mode | no
|
---|
Construction and accessories |
Color | black
|
---|
Weather sealing | yes
|
---|
Mount material | steel
|
---|
Standard accessories | front cap, rear cap, hood, pouch
|
---|
Optional accessories | –
|
---|
Misc |
Lens ID | 32822
|
---|
Comments | Latest firmware: 02 (05/2017)
|
---|
Reviews & links | John Riley at ePHOTOzine (full review), John Sison (video), Jordan Steele on Admiring Light (full review), Mark Goldstein on Photography Blog (full review), Sony (press release)
|
---|
Related lenses | –
|
---|
Part of camera kit | – |
|
