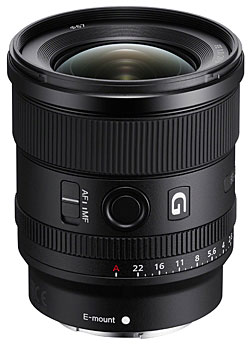

Lens tech data for Sony FE 20/1.8 G
 Image: Sony, used by permission | | General |
|---|
| Name | Sony FE 20/1.8 G
|
|---|
| Mount type | E-mount
|
|---|
| Release year | 2020
|
|---|
| Status | current
|
|---|
| Manufacturer's order code | SEL-20F18G
|
|---|
| Aperture |
|---|
| Minimum aperture | 22
|
|---|
| Aperture blades | 9, circular
|
|---|
| Optical construction |
|---|
| Elements/groups | 14/12
|
|---|
| Minimum focus distance | 19 cm
|
|---|
| Maximum magnification | 1:5 (0.2×)
|
|---|
| Focus design | internal
|
|---|
| Features |
|---|
| AF drive | XD linear
|
|---|
| D function | no
|
|---|
| Lens buttons | 1
|
|---|
| Focus range limiter | –
|
|---|
| Tripod mount | –
|
|---|
| Other features | manual aperture option (w/ click switch), AF/MF switch, breathing compensation
|
|---|
| Dimensions and weight |
|---|
| Minimum length [mm] | 84.7
|
|---|
| Maximum length [mm] | 84.7
|
|---|
| Maximum diameter [mm] | 73.5
|
|---|
| Filter diameter [mm]/type | 67/front
|
|---|
| Weight [g] nominal/net/gross | 373/unknown/unknown
|
|---|
| Hood |
|---|
| Hood mount | bayonet
|
|---|
| Hood shape | flower
|
|---|
| Hood part number | ALC-SH162
|
|---|
| Movements |
|---|
| Filter rotates when focusing | no
|
|---|
| Length changes when focusing | no
|
|---|
| Focus ring rotates in AF mode | no
|
|---|
| Construction and accessories |
|---|
| Color | black
|
|---|
| Weather sealing | yes
|
|---|
| Mount material | steel
|
|---|
| Standard accessories | front cap, rear cap, hood, pouch
|
|---|
| Optional accessories | –
|
|---|
| Misc |
|---|
| Lens ID | unknown
|
|---|
| Comments | –
|
|---|
| Reviews & links | Sony (press release)
|
|---|
| Related lenses | –
|
|---|
| Part of camera kit | – |
|---|
|
