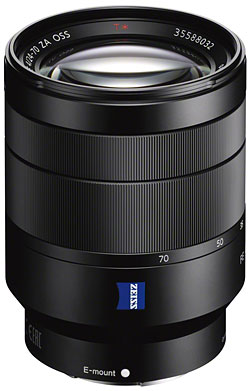

Lens tech data for Carl Zeiss Vario-Tessar T* FE 24-70/4 ZA OSS
Image: Sony, used by permission
| General | |
|---|---|
| Name | Carl Zeiss Vario-Tessar T* FE 24-70/4 ZA OSS |
| Mount type | E-mount |
| Release year | 2014 |
| Status | current |
| Manufacturer's order code | SEL-2470Z |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 12/10 |
| Minimum focus distance | 40 cm |
| Maximum magnification | 1:5 (0.2×) |
| Focus design | internal |
| Features | |
| AF drive | linear |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | optical image stabilizer |
| Dimensions and weight | |
| Minimum length [mm] | 94.5 |
| Maximum length [mm] | 125.5 |
| Maximum diameter [mm] | 73.0 |
| Filter diameter [mm]/type | 67/front |
| Weight [g] nominal/net/gross | 426/420/490 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH130 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32795 |
| Comments | Latest firmware: 02 (07/2016) |
| Reviews & links | Chris Gampat on The Phoblographer (full review), Jason Hermann on SonyAlphaLab (video), John Sison (video), Jordan Steele on Admiring Light (full review), Klaus Schroiff on photozone.de (full review), Kurt Munger on Photo Jottings (full review), Phillip Reeve (full review), Photo Review Australia (full review), Richard Sibley on Amateur Photographer (full review) |
| Related lenses | – |
| Part of camera kit | – |
