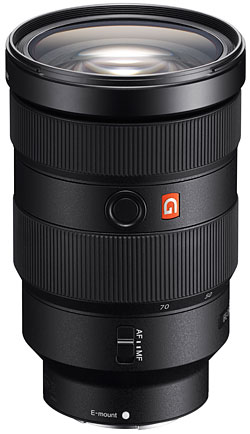

Lens tech data for Sony FE 24-70/2.8 GM
| General | |
|---|---|
| Name | Sony FE 24-70/2.8 GM |
| Mount type | E-mount |
| Release year | 2016 |
| Status | current |
| Manufacturer's order code | SEL-2470GM |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 18/13 |
| Minimum focus distance | 38 cm |
| Maximum magnification | 1:4.1 (0.24×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (direct drive) |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | AF/MF switch, zoom lock switch, breathing compensation |
| Dimensions and weight | |
| Minimum length [mm] | 136.0 |
| Maximum length [mm] | 168.0 |
| Maximum diameter [mm] | 87.6 |
| Filter diameter [mm]/type | 82/front |
| Weight [g] nominal/net/gross | 886/890/960 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH141 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32821 |
| Comments | Latest firmware: 02 (05/2017) |
| Reviews & links | Chris Gampat on The Phoblographer (full review), DigitalRev (video), John Riley on ePHOTOzine (full review), John Sison (video), Jordan Steele on Admiring Light (full review), Klaus Schroiff on Photozone.de (full frame) (full review), Mark Goldstein on Photography Blog (full review), Phillip Reeve (full review), Tony Northrup (video) |
| Related lenses | – |
| Part of camera kit | – |
