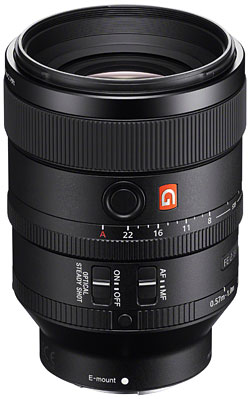

Lens tech data for Sony FE 100/2.8 [T5.6] STF GM OSS

General
Name	Sony FE 100/2.8 [T5.6] STF GM OSS
Mount type	E-mount
Release year	2017
Status	current
Manufacturer's order code	SEL-100F28GM
Aperture
Minimum aperture	20
Aperture blades	11, circular
Optical construction
Elements/groups	13/10
Minimum focus distance	85 cm, 57 cm (w/ macro switch)
Maximum magnification	1:4 (0.25×)
Focus design	internal
Features
AF drive	SSM (direct drive), DMF compatible
D function	no
Lens buttons	1
Focus range limiter	–
Tripod mount	–
Other features	manual aperture option, optical image stabilizer, AF/MF switch, apodization filter, macro switch, breathing compensation
Dimensions and weight
Minimum length [mm]	118.1
Maximum length [mm]	118.1
Maximum diameter [mm]	85.2
Filter diameter [mm]/type	72/front
Weight [g] nominal/net/gross	700/700/780
Hood
Hood mount	bayonet
Hood shape	round
Hood part number	ALC-SH147
Movements
Filter rotates when focusing	no
Length changes when focusing	no
Focus ring rotates in AF mode	no
Construction and accessories
Color	black
Weather sealing	yes
Mount material	steel
Standard accessories	front cap, rear cap, hood, case
Optional accessories	–
Misc
Lens ID	33076
Comments	–
Reviews & links	John Sison (video), Klaus Schroiff on Photozone.de (full frame) (full review), Mark Goldstein on Photography Blog (full review)
Related lenses	–
Part of camera kit	–
