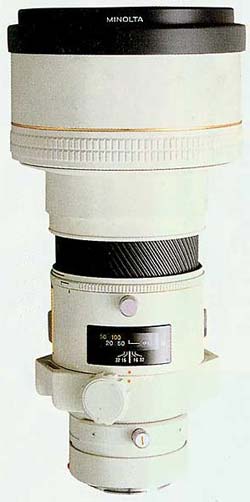

Lens tech data for Minolta AF 300/2.8 APO
| General | |
|---|---|
| Name | Minolta AF 300/2.8 APO |
| Mount type | A-mount |
| Release year | 1985 |
| Status | discontinued |
| Manufacturer's order code | 2563-100 |
| Aperture | |
| Minimum aperture | 32 |
| Aperture blades | 9 |
| Optical construction | |
| Elements/groups | 11/9 |
| Minimum focus distance | 250 cm |
| Maximum magnification | 1:7.14 (0.14×) |
| Focus design | internal |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | mechanical, free range |
| Tripod mount | non-removable |
| Other features | clear protective front filter, distance scale, strap eyelets |
| Dimensions and weight | |
| Minimum length [mm] | 238.5 |
| Maximum length [mm] | 238.5 |
| Maximum diameter [mm] | 128.0 |
| Filter diameter [mm]/type | 42/rear, 114/front |
| Weight [g] nominal/net/gross | 2480/unknown/unknown |
| Hood | |
| Hood mount | integrated |
| Hood shape | round |
| Hood part number | – |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | no |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | white |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, case, filters Y52, ND4×, O56, R60, 1B |
| Optional accessories | rear circular polarizer |
| Misc | |
| Lens ID | 25631 |
| Comments | – |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
