Lens tech data for Sony Alpha DT 18-55/3.5-5.6 SAM Ⅱ

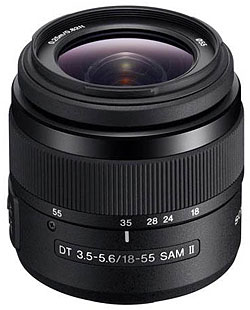

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony Alpha DT 18-55/3.5-5.6 SAM Ⅱ |
| Mount type | A-mount |
| Release year | 2013 |
| Status | current |
| Manufacturer's order code | SAL-1855-2 |
| Aperture | |
| Minimum aperture | 22–36 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 8/7 |
| Minimum focus distance | 25 cm |
| Maximum magnification | 1:2.9 (0.34×) |
| Focus design | front |
| Features | |
| AF drive | SAM (micro) |
| D function | yes |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | AF/MF switch |
| Dimensions and weight | |
| Minimum length [mm] | 69.0 |
| Maximum length [mm] | 88.0 |
| Maximum diameter [mm] | 71.6 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 222/222/245 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | ALC-SH108 |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | no |
| Length changes when focusing | yes |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | polycarbonate |
| Standard accessories | front cap, rear cap |
| Optional accessories | hood |
| Misc | |
| Lens ID | 55 |
| Comments | same design as older version |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | |
