Lens tech data for Sony Alpha 70-300/4.5-5.6 G SSM Ⅱ

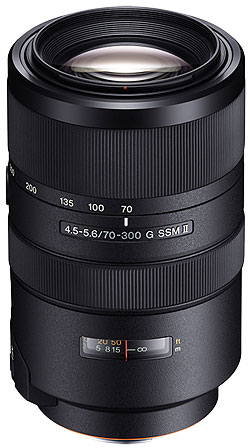

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony Alpha 70-300/4.5-5.6 G SSM Ⅱ |
| Mount type | A-mount |
| Release year | 2015 |
| Status | current |
| Manufacturer's order code | SAL-70300G2 |
| Aperture | |
| Minimum aperture | 22–29 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 16/11 |
| Minimum focus distance | 120 cm |
| Maximum magnification | 1:4 (0.25×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (ring) |
| D function | yes |
| Lens buttons | 1 |
| Focus range limiter | electronic, dual range |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 135.5 |
| Maximum length [mm] | 196.0 |
| Maximum diameter [mm] | 82.5 |
| Filter diameter [mm]/type | 62/front |
| Weight [g] nominal/net/gross | 750/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH140 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | front |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | unknown |
| Comments | improved coating and AF performance; same design as older version |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
