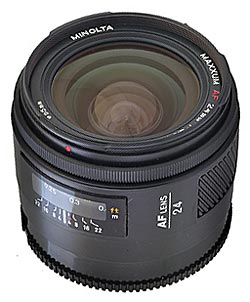

Lens tech data for Minolta AF 24/2.8
| General | |
|---|---|
| Name | Minolta AF 24/2.8 |
| Mount type | A-mount |
| Release year | 1985 |
| Status | discontinued |
| Manufacturer's order code | 2566-110 |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 7 |
| Optical construction | |
| Elements/groups | 8/8 |
| Minimum focus distance | 25 cm |
| Maximum magnification | 1:6.25 (0.16×) |
| Focus design | rear, floating |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 44.0 |
| Maximum length [mm] | 44.0 |
| Maximum diameter [mm] | 65.0 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 215/210/249 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | 6684-410 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | no |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | case LH-1031, pouch LS-2100 |
| Misc | |
| Lens ID | 25661 |
| Comments | – |
| Reviews & links | Michael Hohner (full review), Kurt Munger (full review) |
| Related lenses | |
| Part of camera kit | – |
