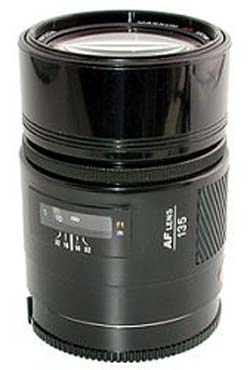

Lens tech data for Minolta AF 135/2.8

General
Name	Minolta AF 135/2.8
Mount type	A-mount
Release year	1985
Status	discontinued
Manufacturer's order code	2556-100
Aperture
Minimum aperture	32
Aperture blades	7
Optical construction
Elements/groups	7/5
Minimum focus distance	100 cm
Maximum magnification	1:6.25 (0.16×)
Focus design	internal
Features
AF drive	in-body motor
D function	no
Lens buttons	–
Focus range limiter	–
Tripod mount	–
Other features	distance scale
Dimensions and weight
Minimum length [mm]	83.0
Maximum length [mm]	83.0
Maximum diameter [mm]	65.5
Filter diameter [mm]/type	55/front
Weight [g] nominal/net/gross	365/369/390
Hood
Hood mount	integrated
Hood shape	round
Hood part number	–
Movements
Filter rotates when focusing	no
Length changes when focusing	no
Focus ring rotates in AF mode	yes
Construction and accessories
Color	black
Weather sealing	no
Mount material	steel
Standard accessories	front cap, rear cap
Optional accessories	case LH-1013
Misc
Lens ID	25561
Comments	–
Reviews & links	–
Related lenses	–
Part of camera kit	–

This data sheet was viewed 12005 times.

Compare this lens to

Subscribe to feeds containing equipment table updates:

This item: RSS Atom, All lenses: RSS Atom, All tables: RSS Atom

Readers' comments

#1: Comment posted by Mark on April 15th, 2015 - 09:27:15 PM:

With respect to the optional Minolta LH-1013 hard lens case for the Min AF 135/2.8, the part code for it is: 6556-511. I wonder if maybe that could also be included and maybe shown something like: LH-1013 (6556-511).

There's a handy Minolta lens case model/part number reference website at:

http://wiki.vitorfonseca.com/Minolta-Cases.ashx

Just a thought in case such information would be found to be useful.

Michael Hohner answers:
Normally this would go on the accessories page, if it had a section for cases, bags, etc. I've avoided these items for now, because then I'd have to add all these Sony camera bags that are really fashion items. I'll think about it.

#2: Comment posted by Mark on April 17th, 2015 - 02:46:04 PM:

As the lens case model number is already listed as part of the lens info (see below), I was only suggesting adding the MPN next to the model number in the lens construction and accessories section to read:

Case LH-1013 (6556-511)

It currently shows as:

Optional accessories: case LH-1013

I wasn't suggesting a totally separate page or pages for accessories when it already exists within the specific lens page. My thinking is that apart from the model code, adding the MPN in brackets next to it (if known), but maybe I'm over-complicating things unnecessarily.
