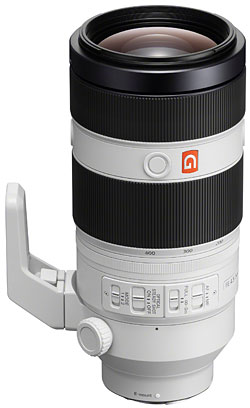

Lens tech data for Sony FE 100-400/4.5-5.6 GM OSS
| General | |
|---|---|
| Name | Sony FE 100-400/4.5-5.6 GM OSS |
| Mount type | E-mount |
| Release year | 2017 |
| Status | current |
| Manufacturer's order code | SEL-100400GM |
| Aperture | |
| Minimum aperture | 32-40 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 22/16 |
| Minimum focus distance | 98 cm |
| Maximum magnification | 1:2.8 (0.35×) |
| Focus design | internal, floating |
| Features | |
| AF drive | SSM (direct drive), DMF compatible |
| D function | no |
| Lens buttons | 3 |
| Focus range limiter | electronic, dual range |
| Tripod mount | removable |
| Other features | optical image stabilizer, AF/MF switch |
| Dimensions and weight | |
| Minimum length [mm] | 205.0 |
| Maximum length [mm] | unknown |
| Maximum diameter [mm] | 93.9 |
| Filter diameter [mm]/type | 77/front |
| Weight [g] nominal/net/gross | 1395/1400/1610 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | ALC-SH151 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | white |
| Weather sealing | yes |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, case |
| Optional accessories | – |
| Misc | |
| Lens ID | 32829 |
| Comments | zoom torque adjustment; latest firmware: 06 (02/2024) |
| Reviews & links | Amy Davies on Photography Blog (full review), Chris Gampat on The Phoblographer (full review), Gordon Laing at Camera Labs (full review), Jeremy Gray on Imaging Resource (full review), John Sison (video) |
| Related lenses | |
| Part of camera kit | – |
