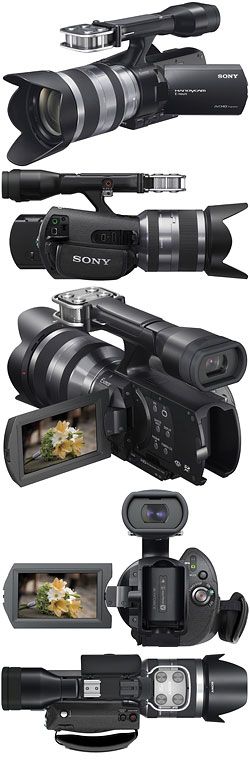

Camera tech data for Sony NEX-VG20E
| General | |
|---|---|
| Name | Sony NEX-VG20E , NEX-VG20 (Japan, USA) |
| Mount type | E-mount |
| Supported lenses | E, FE, A-mount (via LA-EAx) |
| Release year | 2011 |
| Status | discontinued |
| Digital parameters | |
| Output resolution [pixels] | 4912×3264, 3568×2368, 2448×1624 |
| Output resolution (16:9) [pixels] | 4912×2760, 3568×2000, 2448×1376 |
| Effective output pixels | 16.0 M |
| Sensor type | CMOS, Bayer pattern, 12-bit ADC |
| Sensor size [mm] (crop factor) | 23.5×15.6 (1.5×) |
| ISO range | auto, 100–25600 (1/1 stops) |
| Gain [dB] | 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 |
| Color and post-processing | |
| Color spaces | sRGB |
| Image parameters | contrast, saturation, sharpness (-3 – +3) |
| Creative styles | standard, vivid, portrait, landscape, sunset, B/W |
| Picture effects | – |
| Picture parameters | gamma (2 options) |
| Gamma settings | Movie |
| Picture profiles | – |
| White balance | auto, daylight, tungsten, custom (1 register) |
| Color temperature range [K] | 2500–9900 |
| Color temperature increments [K] | 100 |
| Color compensation index [steps] | ± 9 (G/M) |
| White-balance bracketing [pictures per shot] (steps [mired]) | – |
| Noise reduction | long exp. (>1s), high-ISO (2 levels) |
| D-range optimizer | advanced auto, manual (5 levels) |
| DRO bracketing [pictures per shot] (levels) | – |
| Auto HDR | auto, manual (1–6 EV) |
| Lens compensation | – |
| Movie recording | |
| Movie resolutions [size/fps] | 1920×1080p50, 1920×1080p25, 1920×1080i50, 1440×1080i50, 720×576i50 |
| Movie ISO range | unknown |
| Shutter speed (movie) [s] | 1/4 – 1/8000 |
| Movie frame rates [fps] | 50 |
| Movie formats | AVCHD 2.0, MPEG-2 |
| Audio formats | Dolby Digital 5.1, Dolby Digital AC3 |
| Movie length | unlimited |
| Microphone | built-in (stereo), 3.5 mm plug (stereo), level control |
| Audio monitoring | 3.5 mm (stereo) |
| Movie features | creative styles |
| Auto-focus | |
| AF sensors | 25 areas |
| AF range [EV] | 0 – 20 |
| AF modes | AF-A, AF-S, AF-C, DMF, Tracking AF |
| AF assist light | no |
| AF adjustment [no. of lenses] | 30 |
| AF bracketing [step width] ([number of shots]) | - (-) |
| Features | |
| Remote control via USB/WiFi | no |
| Other features | MF peaking, Anti-Dust, BRAVIA Sync, face recognition, speaker |
| Metering | |
| Metering modes | 63 segments, spot |
| Metering range [EV] (with spot) | 0 – 20 (0 – 20) |
| Auto Exposure Lock button | no |
| Exposure modes | P, A, S, M |
| Subject programs | hand-held night shot, anti motion blur |
| Exposure compensation [stops] (steps [stops]) | ± 2 (1/3) |
| Zebra | yes |
| Flash | |
| Flash shoe type | ISO (mechanical), iISO |
| Accessory shoe cap | – |
| Flash modes | normal, red-eye reduction, rear sync, slow sync |
| Flash metering | Pre-Flash TTL |
| Requires D flash unit | yes |
| Flash guide number [m]/ coverage [mm] | -/- |
| X-Sync speed [s] | unknown |
| High Speed Sync | no |
| Wireless flash | no |
| Wireless x-sync speed [s] | – |
| Wireless HSS | no |
| Ratio flash control | no |
| Flash exposure compensation [stops] (steps [stops]) | ± 2 (1/3) |
| Studio flash socket | no |
| Viewfinder | |
| Viewfinder type | electronic |
| Size [cm/inches]/ resolution [pixels] | 1.1cm/800×480 |
| Viewfinder coverage | 100% |
| Viewfinder magnification | unknown |
| Eye relief [mm]/ from frame [mm] | unknown |
| Diopter adjustment [diopters] | yes |
| Eyepiece cup | unknown |
| Viewfinder accessory compatible | no |
| Live View | main sensor |
| Live View zoom | – |
| Display | |
| Display technology, size [mm/inches], resolution [dots] | TFT, 3″, 921600 |
| Display mount | tilt up 180°, tilt down 90° |
| Histogram display | luminance |
| Automatic brightness | no |
| Touch screen | no |
| Video output interfaces | HDMI-Mini (1080i/720p/ 580p/576p), component video out |
| Display accessories (opt.) | – |
| Shooting | |
| Frame rate [fps] | 6 |
| Frame rate with AF [fps] | unknown |
| Shutter speed (still) [s] | 30 – 1/4000 |
| Shutter type | elec. |
| Self-timer [s] | 10 |
| Continuous self-timer [shots] | – |
| Bracketing frames (stops) | 3 (1/3, 2/3) |
| Remote release socket | – |
| Wireless remote release | RMT-845 |
| Release priority | no |
| Depth of field preview | no |
| Aperture can be changed during depth of field preview | no |
| Silent depth of field preview | no |
| Storage | |
| Storage media (number of slots) | Memory Stick Duo, PRO Duo, PRO-HG Duo, SD, SDHC, SDXC (1) |
| Remote storage via USB | no |
| Remote storage via FTP | no |
| File system formats | FAT12, FAT16, FAT32, exFAT |
| File formats | ARW, JPEG w/ EXIF 2.3 |
| Power | |
| Batteries | 1× NP-FV70, 1× NP-FV100 |
| Battery pack | – |
| External power supply | AC adaptor AC-VQ900AM, AC adaptor AC-PW10AM |
| Construction and accessories | |
| Weather sealing | no |
| Mount material | steel |
| Weight [g] | 645 |
| Standard accessories | body cap, USB cable, remote control RMT-845, battery NP-FV70, charger BC-VH1, AC power adapter AC-PW10AM, pop filter, software |
| Other optional accessories | lens adapters LA-EAx, microphone ECM-CG50 |
| Misc | |
| Other interfaces | USB 2.0 (High Speed; Mini-B) |
| USB modes | mass storage, PTP/PictBridge |
| Printing | Exif Print, Print Image Matching Ⅲ |
| Latest firmware version (release date) | Ver. 01 |
| Comments | – |
| Reviews & links | Chris Niccolls on TheCameraStoreTV (video) |
| Related cameras | |
| Kits |
|
