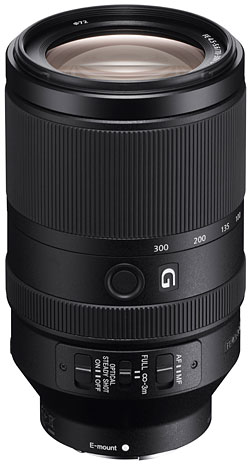

Lens tech data for Sony FE 70-300/4.5-5.6 G OSS
| General | |
|---|---|
| Name | Sony FE 70-300/4.5-5.6 G OSS |
| Mount type | E-mount |
| Release year | 2016 |
| Status | current |
| Manufacturer's order code | SEL-70300G |
| Aperture | |
| Minimum aperture | 22-29 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 16/13 |
| Minimum focus distance | 90 cm |
| Maximum magnification | 1:3.2 (0.31×) |
| Focus design | internal |
| Features | |
| AF drive | linear |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | electronic, dual range |
| Tripod mount | – |
| Other features | optical image stabilizer, AF/MF switch, zoom lock switch |
| Dimensions and weight | |
| Minimum length [mm] | 143.5 |
| Maximum length [mm] | 208.0 |
| Maximum diameter [mm] | 84.0 |
| Filter diameter [mm]/type | 72/front |
| Weight [g] nominal/net/gross | 854/860/940 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | ALC-SH144 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | front |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32828 |
| Comments | – |
| Reviews & links | Chris Gampat on The Phoblographer (full review), Jack Baker on Photography Blog (full review), Jason Hermann on SonyAlphaLab (video), John Riley on ePHOTOzine (full review), John Sison (video), Klaus Schroiff at photozone.de (full frame) (full review) |
| Related lenses | – |
| Part of camera kit | – |
