Lens tech data for Carl Zeiss Sonnar T* FE 55/1.8 ZA

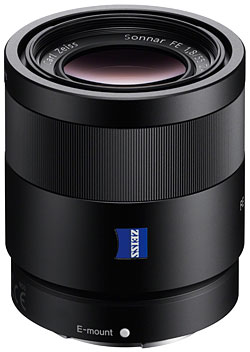

 Image: Sony, used by permission | | General |
|---|
| Name | Carl Zeiss Sonnar T* FE 55/1.8 ZA
|
|---|
| Mount type | E-mount
|
|---|
| Release year | 2013
|
|---|
| Status | current
|
|---|
| Manufacturer's order code | SEL-55F18Z
|
|---|
| Aperture |
|---|
| Minimum aperture | 22
|
|---|
| Aperture blades | 9, circular
|
|---|
| Optical construction |
|---|
| Elements/groups | 7/5
|
|---|
| Minimum focus distance | 50 cm
|
|---|
| Maximum magnification | 1:7.1 (0.14×)
|
|---|
| Focus design | internal
|
|---|
| Features |
|---|
| AF drive | linear
|
|---|
| D function | no
|
|---|
| Lens buttons | –
|
|---|
| Focus range limiter | –
|
|---|
| Tripod mount | –
|
|---|
| Other features | –
|
|---|
| Dimensions and weight |
|---|
| Minimum length [mm] | 70.5
|
|---|
| Maximum length [mm] | 70.5
|
|---|
| Maximum diameter [mm] | 64.4
|
|---|
| Filter diameter [mm]/type | 49/front
|
|---|
| Weight [g] nominal/net/gross | 281/280/340
|
|---|
| Hood |
|---|
| Hood mount | bayonet
|
|---|
| Hood shape | flower
|
|---|
| Hood part number | ALC-SH131
|
|---|
| Movements |
|---|
| Filter rotates when focusing | no
|
|---|
| Length changes when focusing | no
|
|---|
| Focus ring rotates in AF mode | no
|
|---|
| Construction and accessories |
|---|
| Color | black
|
|---|
| Weather sealing | yes
|
|---|
| Mount material | steel
|
|---|
| Standard accessories | front cap, rear cap, hood, pouch
|
|---|
| Optional accessories | –
|
|---|
| Misc |
|---|
| Lens ID | 32808
|
|---|
| Comments | Latest firmware: 02 (07/2016)
|
|---|
| Reviews & links | Gordon Laing at Camera Labs (full review), Ivo Freriks on CamerastuffReview (full review), John Sison (video), Jordan Steele (full review), Julius Motal on The Phoblographer (full review), Klaus Schroiff at photozone.de (full review), Kurt Munger on Photo Jottings (full review), Mark Goldstein on Photography Blog (full review), Michael Comeau (full review), Phillip Reeve (full review)
|
|---|
| Related lenses | –
|
|---|
| Part of camera kit | – |
|---|
|
