Lens tech data for Carl Zeiss Planar T* 85/1.4 ZA

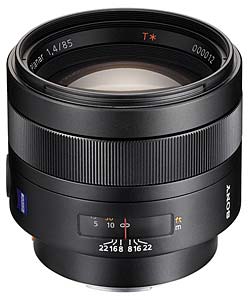

Image: Sony, used by permission
| General | |
|---|---|
| Name | Carl Zeiss Planar T* 85/1.4 ZA |
| Mount type | A-mount |
| Release year | 2006 |
| Status | current |
| Manufacturer's order code | SAL-85F14Z |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 8/7 |
| Minimum focus distance | 85 cm |
| Maximum magnification | 1:7.87 (0.13×) |
| Focus design | front, floating |
| Features | |
| AF drive | in-body motor |
| D function | yes |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 75.0 |
| Maximum length [mm] | 90.0 |
| Maximum diameter [mm] | 81.0 |
| Filter diameter [mm]/type | 72/front |
| Weight [g] nominal/net/gross | 640/635/746 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | ALC-SH0002 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 45 |
| Comments | – |
| Reviews & links | Chris Gampat on The Phoblographer (full review), John Sison (video), Klaus Schroiff on photozone.de (full review), Klaus Schroiff on Photozone.de (full frame) (full review), Kurt Munger (full review), minman on dyxum.com (full review), Mladen Sever on Dyxum (full review) |
| Related lenses | – |
| Part of camera kit | – |
