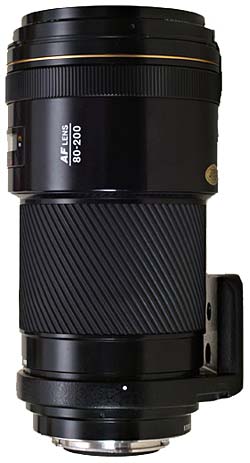

Lens tech data for Minolta AF 80-200/2.8 APO
| General | |
|---|---|
| Name | Minolta AF 80-200/2.8 APO |
| Mount type | A-mount |
| Release year | 1987 |
| Status | discontinued |
| Manufacturer's order code | 2589-100 |
| Aperture | |
| Minimum aperture | 32 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 16/13 |
| Minimum focus distance | 180 cm |
| Maximum magnification | 1:6.9 (0.14×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | non-removable |
| Other features | distance scale, strap eyelets |
| Dimensions and weight | |
| Minimum length [mm] | 166.0 |
| Maximum length [mm] | 175.0 |
| Maximum diameter [mm] | 88.0 |
| Filter diameter [mm]/type | 72/front |
| Weight [g] nominal/net/gross | 1300/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | 6589-810 |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | no |
| Length changes when focusing | yes |
| Length changes when zooming | no |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, case |
| Optional accessories | – |
| Misc | |
| Lens ID | 25891 |
| Comments | – |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
