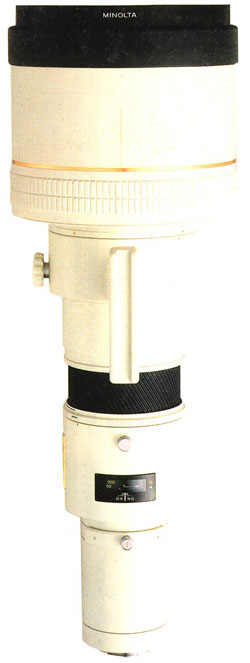

Lens tech data for Minolta AF 600/4 APO
 | | General |
|---|
| Name | Minolta AF 600/4 APO
|
|---|
| Mount type | A-mount
|
|---|
| Release year | 1986
|
|---|
| Status | discontinued
|
|---|
| Manufacturer's order code | 2565-100
|
|---|
| Aperture |
|---|
| Minimum aperture | 32
|
|---|
| Aperture blades | 9
|
|---|
| Optical construction |
|---|
| Elements/groups | 10/9
|
|---|
| Minimum focus distance | 600 cm
|
|---|
| Maximum magnification | 1:9.09 (0.11×)
|
|---|
| Focus design | internal
|
|---|
| Features |
|---|
| AF drive | in-body motor
|
|---|
| D function | no
|
|---|
| Lens buttons | –
|
|---|
| Focus range limiter | mechanical, free range
|
|---|
| Tripod mount | non-removable
|
|---|
| Other features | clear protective front filter, distance scale
|
|---|
| Dimensions and weight |
|---|
| Minimum length [mm] | 449.0
|
|---|
| Maximum length [mm] | 449.0
|
|---|
| Maximum diameter [mm] | 169.0
|
|---|
| Filter diameter [mm]/type | 42/rear
|
|---|
| Weight [g] nominal/net/gross | 5500/unknown/6150
|
|---|
| Hood |
|---|
| Hood mount | integrated
|
|---|
| Hood shape | round
|
|---|
| Hood part number | –
|
|---|
| Movements |
|---|
| Filter rotates when focusing | no
|
|---|
| Length changes when focusing | no
|
|---|
| Focus ring rotates in AF mode | yes
|
|---|
| Construction and accessories |
|---|
| Color | white
|
|---|
| Weather sealing | no
|
|---|
| Mount material | steel
|
|---|
| Standard accessories | front cap, rear cap, hood, case, filters Y52, ND4×, O56, R60, 1B
|
|---|
| Optional accessories | rear circular polarizer
|
|---|
| Misc |
|---|
| Lens ID | 25651
|
|---|
| Comments | gearing and electronis update to HS level available
|
|---|
| Reviews & links | –
|
|---|
| Related lenses |
|
|---|
| Part of camera kit | – |
|---|
|
