Lens tech data for Sony Alpha 300/2.8 G SSM Ⅱ

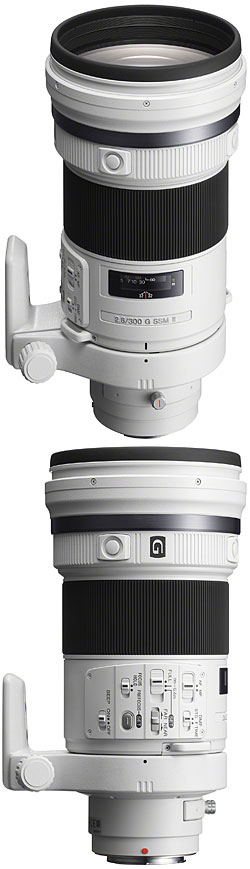

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony Alpha 300/2.8 G SSM Ⅱ |
| Mount type | A-mount |
| Release year | 2012 |
| Status | current |
| Manufacturer's order code | SAL-300F28G2 |
| Aperture | |
| Minimum aperture | 32 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 13/12 |
| Minimum focus distance | 200 cm |
| Maximum magnification | 1:5.56 (0.18×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (ring) |
| D function | yes |
| Lens buttons | 4 |
| Focus range limiter | electronic, free range |
| Tripod mount | removable |
| Other features | prefocus, DMF modes, distance scale, strap eyelets |
| Dimensions and weight | |
| Minimum length [mm] | 242.5 |
| Maximum length [mm] | 242.5 |
| Maximum diameter [mm] | 122.0 |
| Filter diameter [mm]/type | 42/rear |
| Weight [g] nominal/net/gross | 2340/unknown/unknown |
| Hood | |
| Hood mount | clip-on |
| Hood shape | round |
| Hood part number | ALC-SH0012 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | white |
| Weather sealing | yes |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, case, rear circular polarizer |
| Optional accessories | rear filters |
| Misc | |
| Lens ID | 66 |
| Comments | same design as older version; improved coating and AF |
| Reviews & links | John Sison (video) |
| Related lenses | |
| Part of camera kit | – |
