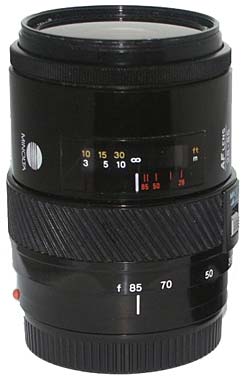

Lens tech data for Minolta AF 28-85/3.5-4.5
| General | |
|---|---|
| Name | Minolta AF 28-85/3.5-4.5 |
| Mount type | A-mount |
| Release year | 1985 |
| Status | discontinued |
| Manufacturer's order code | 2552-100 |
| Aperture | |
| Minimum aperture | 22–27 |
| Aperture blades | 7 |
| Optical construction | |
| Elements/groups | 13/10 |
| Minimum focus distance | 80 cm, 24.6 cm (w/ macro switch) |
| Maximum magnification | 1:8.3 (0.12×), 1:4 (0.25×, w/ macro switch) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | macro switch, distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 85.5 |
| Maximum length [mm] | 110.0 |
| Maximum diameter [mm] | 68.5 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 490/496/520 |
| Hood | |
| Hood mount | clip-on |
| Hood shape | round |
| Hood part number | unknown |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | no |
| Length changes when focusing | yes |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | – |
| Misc | |
| Lens ID | 25521 |
| Comments | – |
| Reviews & links | Kurt Munger (full review) |
| Related lenses | |
| Part of camera kit | – |
