Lens tech data for Minolta AF 100/2.8 Soft Focus

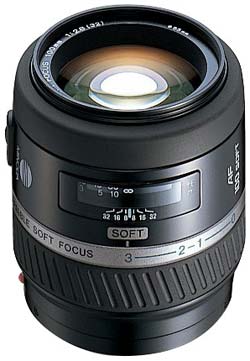

Image: Minolta, used by permission
| General | |
|---|---|
| Name | Minolta AF 100/2.8 Soft Focus |
| Mount type | A-mount |
| Release year | 1994 |
| Status | discontinued |
| Manufacturer's order code | 2648-118 |
| Aperture | |
| Minimum aperture | 32 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 7/7 |
| Minimum focus distance | 80 cm |
| Maximum magnification | 1:5.88 (0.17×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | 3 levels of "softness"; 1 sharp setting, distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 78.0 |
| Maximum length [mm] | 106.0 |
| Maximum diameter [mm] | 71.5 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 440/unknown/492 |
| Hood | |
| Hood mount | clip-on |
| Hood shape | round |
| Hood part number | 6648-810 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | case LH-1043, pouch LS-2200 |
| Misc | |
| Lens ID | 12 |
| Comments | – |
| Reviews & links | – |
| Related lenses | – |
| Part of camera kit | – |
