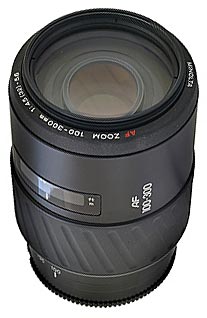

Lens tech data for Minolta AF 100-300/4.5-5.6
| General | |
|---|---|
| Name | Minolta AF 100-300/4.5-5.6 |
| Mount type | A-mount |
| Release year | 1988 |
| Status | discontinued |
| Manufacturer's order code | 2606-110 |
| Aperture | |
| Minimum aperture | 32–38 |
| Aperture blades | 9 |
| Optical construction | |
| Elements/groups | 11/9 |
| Minimum focus distance | 150 cm |
| Maximum magnification | 1:4 (0.25×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 101.5 |
| Maximum length [mm] | 158.0 |
| Maximum diameter [mm] | 72.5 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 420/406/450 |
| Hood | |
| Hood mount | clip-on |
| Hood shape | round |
| Hood part number | 6507-810 |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | no |
| Length changes when focusing | yes |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | – |
| Misc | |
| Lens ID | 26061 |
| Comments | – |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
