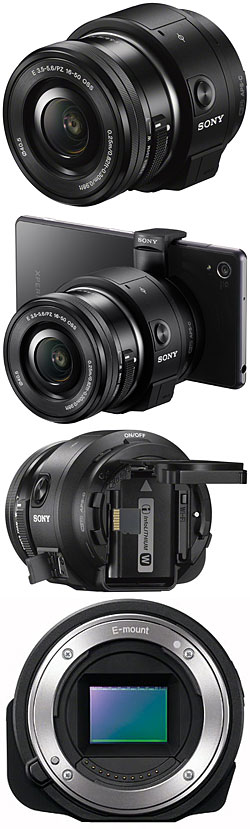

Camera tech data for Sony ILCE-QX1
| General | |
|---|---|
| Name | Sony ILCE-QX1 |
| Mount type | E-mount |
| Supported lenses | E, FE, A-mount (via LA-EAx) |
| Release year | 2014 |
| Status | discontinued |
| Digital parameters | |
| Output resolution [pixels] | 5456×3632, 3872×2576, 2736×1824 |
| Output resolution (16:9) [pixels] | 5456×3064, 3872×2176, 2736×1536 |
| Output resolution (4:3) [pixels] | – |
| Output resolution (1:1) [pixels] | – |
| Output resolution (panorama) [pixels] | – |
| Output resolution (3D panorama) [pixels] | – |
| Effective output pixels | 19.8 M |
| Sensor type | CMOS, Bayer pattern, 12-bit ADC |
| Sensor size [mm] (crop factor) | 23.2×15.4 (1.5×) |
| ISO range | auto (100–16000; conf.), 100–16000 (1/1 stops) |
| Color and post-processing | |
| Color spaces | sRGB |
| Image parameters | contrast, saturation, sharpness (-3 – +3) |
| Creative styles | – |
| Creative look | – |
| Picture effects | – |
| Picture parameters | – |
| Gamma settings | – |
| Picture profiles | – |
| Soft skin effect | – |
| White balance | auto, daylight, shade, cloudy, tungsten, fluorescent (4 types), flash, direct entry |
| Color temperature range [K] | 2500–9900 |
| Color temperature increments [K] | 100 |
| Color compensation index [steps] | ± 7 (A/B), ± 7 (G/M) |
| White-balance bracketing [pictures per shot] (steps [mired]) | – |
| Noise reduction | – |
| D-range optimizer | – |
| DRO bracketing [pictures per shot] (levels) | – |
| Auto HDR | auto, manual (1–6 EV) |
| Lens compensation | vignetting, chromatic aberration, distortion |
| Movie recording | |
| Movie resolutions [size/fps] | 1920×1080p30 |
| Movie ISO range | 100–6400 |
| Shutter speed (movie) [s] | 1/4 – 1/4000 |
| Movie formats | MPEG-4 |
| Audio formats | MPEG4 AAC-LC |
| Movie length | 29 minutes |
| Microphone | built-in (stereo) |
| Audio monitoring | – |
| Movie features | – |
| Auto-focus | |
| AF sensors | 25 areas |
| AF range [EV] | 0 – 20 |
| AF modes | AF-S, Tracking AF |
| AF assist light | no |
| AF adjustment [no. of lenses] | – |
| AF bracketing [step width] ([number of shots]) | - (-) |
| Features | |
| Eye-start | no |
| Sensor-based image stabilisation | no |
| Remote control via USB/WiFi | no |
| Other features | face recognition, speaker, smart teleconverter, USB charging, WiFi support, NFC |
| Metering | |
| Metering modes | 1200 segments |
| Metering range [EV] (with spot) | −1 – 20 (-) |
| Auto Exposure Lock button | no |
| Exposure modes | iAuto+, Auto+, P, A, S, High-Speed |
| Subject programs | – |
| Exposure compensation [stops] (steps [stops]) | ± 3 (1/3) |
| Zebra | no |
| Flash | |
| Flash shoe type | – |
| Accessory shoe cap | – |
| Flash modes | normal, rear sync, slow sync |
| Flash metering | Pre-Flash TTL |
| Requires D flash unit | – |
| Flash guide number [m]/ coverage [mm] | 4/24 |
| X-Sync speed [s] | 1/160 |
| High Speed Sync | no |
| Wireless flash | no |
| Wireless x-sync speed [s] | – |
| Wireless HSS | no |
| Ratio flash control | no |
| Flash exposure compensation [stops] (steps [stops]) | – |
| Studio flash socket | no |
| Flash Exposure Level lock | no |
| Flash Control from body | no |
| Viewfinder | |
| Viewfinder type | – |
| Viewfinder resolution [pixels] | – |
| Viewfinder coverage | – |
| Viewfinder magnification | – |
| Eye relief [mm]/ from frame [mm] | – |
| Diopter adjustment [diopters] | – |
| Eyepiece cup | – |
| Viewfinder accessory compatible | – |
| Live View | main sensor |
| Live View zoom | – |
| Display | |
| Display technology, size [mm/inches], resolution [dots] | -, - |
| Display mount | – |
| Histogram display | – |
| Automatic brightness | no |
| Touch screen | no |
| Video output interfaces | – |
| Display accessories (opt.) | – |
| Shooting | |
| Frame rate [fps] | 3.5, 2.5 |
| Frame rate with AF [fps] | 2.5 |
| Shutter speed (still) [s] | 30 – 1/4000, B |
| Shutter type | mech., elec. f. c. |
| Self-timer [s] | 10, 2 |
| Continuous self-timer [shots] | – |
| Bracketing frames (stops) | – |
| Remote release socket | Multi Terminal |
| Wireless remote release | yes |
| Release priority | no |
| Depth of field preview | no |
| Aperture can be changed during depth of field preview | no |
| Silent depth of field preview | no |
| Storage | |
| Storage media (number of slots) | Memory Stick Micro, Micro II, microSD, microSDHC, microSDXC (1) |
| Remote storage via USB | no |
| Remote storage via FTP | no |
| File system formats | FAT12, FAT16, FAT32, exFAT |
| File formats | ARW 2.3, JPEG w/ EXIF 2.3 |
| Power | |
| Batteries | 1× NP-FW50 |
| Vertical grip | – |
| External power supply | AC adaptor AC-PW20 |
| Construction and accessories | |
| Weather sealing | no |
| Mount material | steel |
| Weight [g] | 158 |
| Standard accessories | strap, body cap, USB cable, battery NP-FW50, smartphone attachment, adapter/grip ADP-FSK1 |
| Other optional accessories | lens adapters LA-EAx |
| Misc | |
| Other interfaces | USB 2.0 (High Speed; Micro-B; Multi Terminal) |
| USB modes | mass storage, MTP |
| Printing | Exif Print, Print Image Matching Ⅲ |
| Latest firmware version (release date) | unknown |
| Comments | smartphone attachable camera |
| Reviews & links | Richard Sibley on What Digital Camera (full review) |
| Related cameras | – |
| Kits |
|
